Universal charger with microprocessor and balancer for LiPo, LiFe and NiMH batteries.
It is easy to use and designed for battery packs:
LiPo / LiFe: 2–3 cells
NiMH: 1–8 cells
Thanks to its high-quality construction, the charging process is stable, and the microprocessor automatically regulates the optimal voltage and current, preventing overloading and maintaining the battery's initial parameters for a long service life.
The charger has three status LEDs:
Red: charging in progress
Green: battery fully charged
Flashing red: fault – disconnect the power supply and check the connections and battery condition
Operation:
Press once to select the battery type.
To start charging, press and hold the button for 3 seconds.

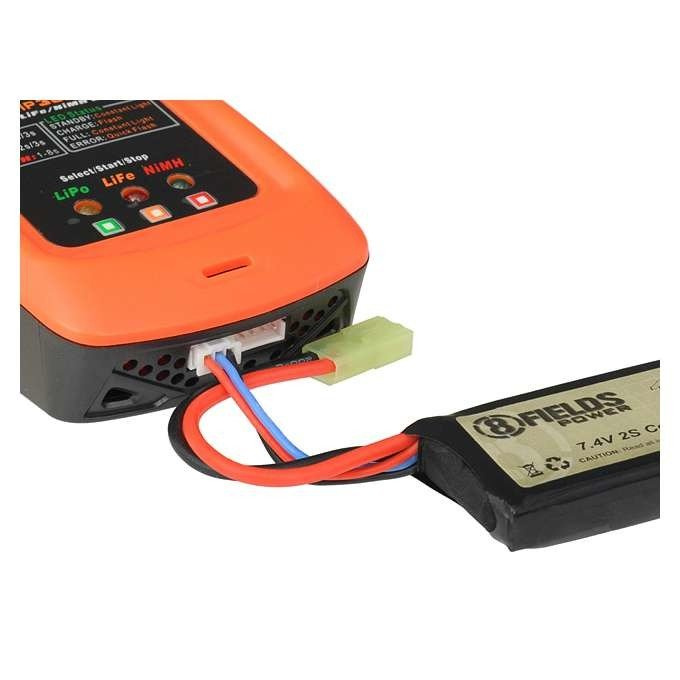

LiPo/LiFe batteries are connected only via the balancer connector, and NiMH batteries via the included adapter.
The balancer has two inputs: for 7.4 V packs and for 11.1 V packs.
The charger does not allow two packs to be charged simultaneously.
Technical specifications:
Power: 25 W
Maximum charging current: 3 A
Power supply: 100–240 V AC
Compatibility: LiPo / LiFe 2–3 cells, NiMH 1–8 cells
Functions: automatic voltage maintenance and balancing of individual cells
Warning!
For indoor use only.
Do not leave the charger unattended and do not charge batteries overnight.
Place the charger on a horizontal surface in a well-ventilated area, away from water and flammable materials.
Do not cover the charger; the ambient temperature should not exceed 30°C.
Do not charge batteries on flammable surfaces (wood, carpet).
Disconnect the power supply before connecting or disconnecting batteries.
Do not disassemble the charger – risk of high voltage.
The use of a safety battery charging bag is recommended.
Avoid short circuits and mechanical damage, which may cause fire.
| width (mm): | 80 |
| Height (mm): | 35 |
| Length (mm): | 100 |
| Weight (g): | 110 |
